Barrow mix laboratory plastic portable 750l twin-shaft cement mixer machine
Product Application
JS series twin shaft concrete mixer is a high efficienct equipment with adavanced design, good performances and it is widely used inconstruction industry, the machine is designed to mix different types of material such as hard material, plastic concrete and other kind of material. The concrete mixers are mainly used in high-speed rail, highway, airport, hudropower station. Except used independently, the concrete mixers can also used together with PL1200 to form the simple concrete mixing plant, the main mixer of the HZS35 concrete mixing plant.

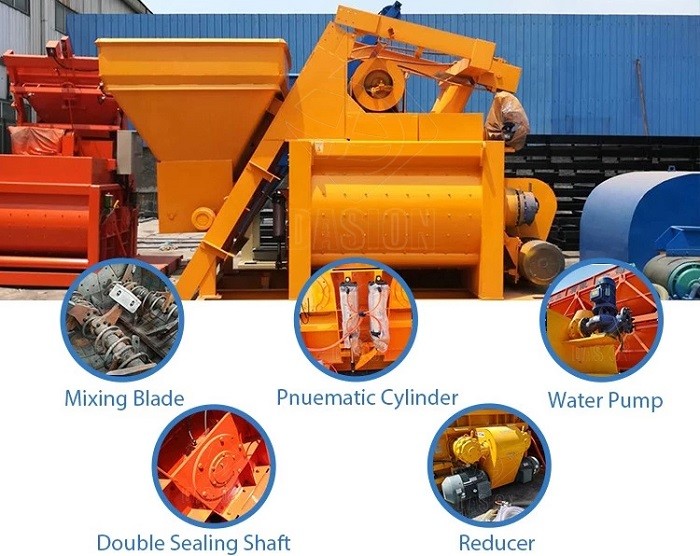

1. Mixing Blade
The material of mixing blade adoptes best wear-resistant material, this expends the life of mixing blade.
2. Hoist System
This system will lift up the hopper with ease, it is stable and powerful.
3. Pnuematic Cylinder
With this device, the machine discharges swiftly. The quality of it is the best.
4. Lubricating System
The material of mixing blade adoptes best wear-resistant material, this expends the life of mixing blade.
Main Features:
1. Reasonable structure, easy in installation and maintation.
2. Adopting advanced components , electric parts and mechanical parts.
3. Fully automatic and efficiency.
4. Wear-resistant blade and lining.
5. Low noise and environment protection.
6. High productivity, it can mix various kinds of materials.
7. Gearbox and spindle are used couplings directly drive , long life, high mechanical efficiency.
8. High wear-resistant alloy cast iron side plates.
9. High discharging speed.
Technical Parameter:
| Model | Unit | JS500 | JS750 | JS1500 | YJS1000 |
| Capacity | m3/h | 25 | 35 | 75 | 50 |
| Discharging capacity | L | 500 | 750 | 1500 | 1000 |
| Charging capacity | L | 800 | 1200 | 2400 | 1500 |
| Max. aggregate size | mm | 80/60 | 80/60 | 80/60 | 80/100 |
| Mixing circle | s | 72 | 72 | 72 | ≤60s |
| Mixing blade | Rational speed | r/min | 35 | 31 | 25.5 | 25.5 |
| Quantity | pcs | 2x7 | 2x7 | 2X8 | 2x7 |
| Mixing motor power | kw | 18.5 | 30 | 22X2 | 18.5x2 |
| Hoist motor power | kw | 5.5 | 7.5 | 18.5 | / |
| Pump motor power | kw | 0.75 | 1.1 | 3 | / |
| Dimension | mm | 4461x3050x52 25 | 4951x3650x62 25 | 9645x3736x97 00 | 2810×3200
×1920 |
| Total weight | kg | 4000 | 5500 | 11300 | 5200 |
| Discharging height | mm | 1500/2700/3800 | 1500/2700/3800 | 3800 | 2700/3800 |
Concrete Mixer Warehouse:
Our Service
1. Provide the space planning, plant planning,and equipment layout;
2. Provide on-site equipment installation, commissioning until normal production;
3. Train the workers in production operations, equipment maintenance;
4. Provide the necessary production technology formula and costing budget;
5. Guarantee one year warranty,spare parts supply;
6. Supply molds and accessories in costing price.
