Ready-mixed certain simple 50m3/h skip hoist central mix concrete batch plant
Introduction of Concrete Batch Plant
1. The batching plant 50m3/hr mainly includes concrete mixer machine, material weighing system, material handling systems, material storage system and control system ect five major systems and other ancillary facilities.
2. Because of its mechanization and high degree automation,so the productivity is very high, and to ensure the quality of concrete and save the cement, commonly used in large projects and long duration concrete cement/aggregate usage for the large and medium-sized water conservancy, electricity, bridges and other industrial and civil building engineering.
3. The batching plant could be used to mix the hard concrete, plastic concrete, liquidity concrete, light weight aggregate concrete and various kinds of mortars, and it is an efficient type of machine with very extensive application.
4. The concrete mixing station is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread.
Technical Features of Concrete Batch Plant
1. Adopt modular structure, unit modular, installation, relocation is very convenient.
2. Improve mixing console and aggregate using JS double shaft concrete mixer, mixing of good quality and high efficiency.
3. The aggregate ingredients with PLD series concrete batching machine, accurate measurement, high production efficiency.
4. Powder using electronic scale metering, ingredients of high precision.
5. Water use electronic scale metering, ingredients of high precision.
Parameters of Concrete Batch Plant
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
| Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h |
| Mixing system | Twin shaft concrete mixer |
| Aggregate feeder | Bucket (Skip hopper) |
| Discharging height | 1500-3800mm | 3800mm | 3800mm | 3800mm |
| After-sale service | Erection & commissioning, operator training |
| Warranty | 12 months after erection |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Discharging volume | 500L | 750L | 1000L | 1500L |
| Charging volume | 800L | 1200L | 1600L | 2400L |
| Mixing circle | 72s | 72s | 72s | 72s |
| Max. mixing size | 80/60mm | 80/60mm | 80/60mm | 80/60mm |
| Aggregate batching machine | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Storage bins quantity | 2 or 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts |
| Aggregate scale hopper | 800L | 1200L | 1600L | 2400L |
| Weighing system | Water, Cement, Additive |
| Weighing precision | ±1% |
| Air system | Air compressor, etc |
| Control system Type | Computer auto-control module (PLC can be optional item) |

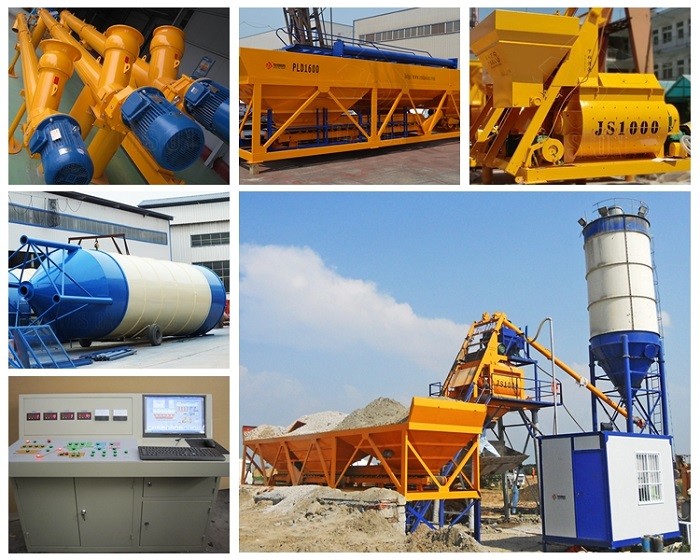

Details of Concrete Batch Plant

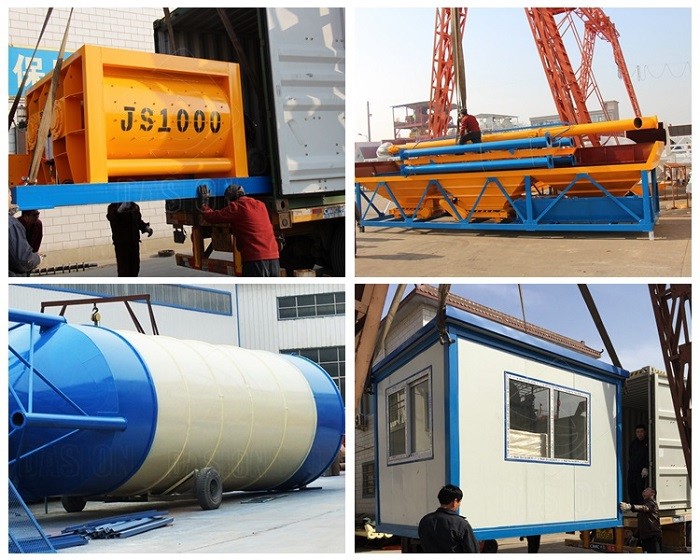

Delivery
